S.01 · iST Taiwan
IC Qualification & Failure Analysis
ICleviathan is the authorised sales agent for iST Taiwan. iST has been accredited by international bodies including IECQ / ISO 17025, TÜV NORD and CNAS, and is used as an independent quality testing laboratory by international brands including TI, Lenovo, Dell, Cisco, Delphi, Continental Automotive, ISTA and HDMI.
- Reliability assurance, component to system level
- Automotive qualification, the full AEC-Q family
- Non-destructive, electrical and physical failure analysis
- Material analysis and FIB circuit edit
S.02 · iST Taiwan
Board Level Reliability
A component that passes AEC-Q or JESD47 has proved the part. It has not proved the solder joint that attaches it to your board, and that joint is where a great many field returns originate: under thermal expansion mismatch, under a drop, or under the flex of an assembled product.

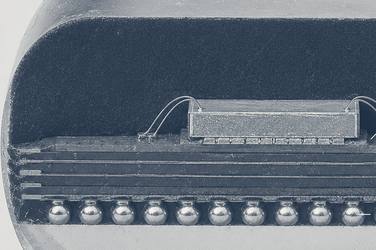

Daisy-chain test vehicles are cycled, dropped, bent and shaken under continuous event detection, so the moment a joint opens is recorded rather than inferred. Dye-and-pry and cross-section afterwards show which joint failed, and where in the joint it started.
- Temperature cycling, IPC-9701
- Board level drop test, JESD22-B111
- Cyclic bend, JESD22-B113
- Shock, vibration, dye-and-pry and cross-section
S.03 · CoAsia SEMI
Digital IC Design
ICleviathan is the authorised sales agent for CoAsia, an official Design Solution Partner in Samsung Foundry's SAFE programme. Turnkey services from concept to silicon supply: design services, system architecture, physical design at advanced nodes, OSAT services, packaging including 2.5D, test, RTL and BSP software, quality control, supply chain management, wafer procurement, logistics and product delivery.
- System architecture
- Physical design down to the 3 nm node
- RTL and BSP software
- OSAT, 2.5D packaging and wafer procurement
S.04 · NanoZeta
Analog & RF Design
ICleviathan is the authorised sales agent for NanoZeta. Analog and mm-wave IC design: full transceiver design, BiCMOS and nm-scale CMOS, PLLs and frequency synthesizers, analog baseband, front-ends, high-speed interfaces and clock distribution.
Process nodes run from 0.18 µm to 5 nm, including FD-SOI and FinFET. Designs already proven in silicon range from short-range wireless at 2.4 GHz up to 76–81 GHz automotive radar front-ends.
- Full transceiver design
- PLL and frequency synthesis
- Analog baseband and RF front-ends
- High-speed interfaces and clock distribution
S.05 · Vendor selection
IC Assembly
ICleviathan accompanies the customer through the assembly process, selecting the assembly house and the package, using our experience in the field to ensure top service is paired with cost efficiency. We weigh capability, yield risk and unit cost rather than whoever quoted first, and stay on the line through qualification builds.
- Package selection and definition
- OSAT qualification
- Wire bond and flip chip
- 2.5D and advanced packaging
S.06 · Samples to volume
IC Manufacturing
ICleviathan has the knowledge and the experience to support every stage of the manufacturing cycle, from samples to high-volume production, including the unglamorous part, which is making sure the part still exists and still ships three years from now.
- Engineering samples
- Volume ramp
- Supply chain management
- Obsolescence and continuity
